DSPA 12 series

  • Exceptional effective non-toxic fire extinguishing agent
  • Uniquely easy to install and Maintain
  • Ecologically safe and environmentally friendly (O.D.P.=0, G.W.P.=0)
  • Very cost efficient

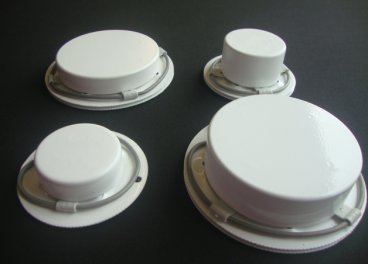

Standalone aerosol fire extinguishing unit with a thermal starter DSPA 12 (DSPA 12/1, 12/2, 12/3, 12/4) is a saturation extinguisher and intended to control and extinguish fires of flammable and combustible liquids, solid fuels and electrical equipment, including energized one.

The generators are used for fire protection of small volumes (electric cabinets, engine compartments, etc.), including vehicles.

When using the generator it necessary to observe the applicable normative documents SP 5.13130.2009 "Automatic fire alarm and control systems".

The generators are not used to extinguish alkali and alkaline earth metals, as well as sub-stances, which burn without air.

DSPA 12 series
Model 12-1 12-2 12-3 12-4
Dimensions 75x20 mm
2,95” x 0,79”
75x28 mm
2,95” x 1,1”
105x20 mm
4,13” x 0,79”

105x28 mm
4,13” x 1,10”

Total weight 0,1 kg
0,22 lbs
0,15 kg
0,33 lbs
0,5 kg
1,10 lbs

0,65 kg
1,43 lbs

Volume coverage 0.3 m³
10,6 ft³
0,6 m³
21,2 ft³
1,1 m³
39 ft³

2,2 m³
78 ft³

Discharge time 5 sec 8 sec 6 sec 10 sec
Activation, current Built-in starter, 1.3A
Operation conditions -40°C to 75°C/  -40°F to 167°F
Up to 95% RH at 54°C
Colour Standard RAL 3000, other colours upon request
