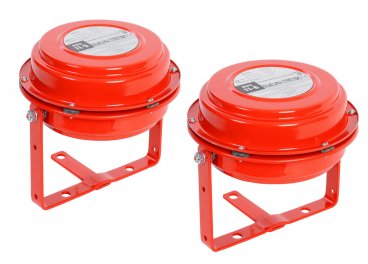

DSPA 11-5, 11-6

Properties
  • Exceptional effective non-toxic fire extinguishing agent
  • Uniquely easy to install and Maintain
  • Tested as per CEN/TR 15276-1, NEN-ISO 15779, UL 2775 and BRL K23001
  • Approved by EPA for SNAP listing
  • Ecologically safe and environmentally friendly (O.D.P.=0, G.W.P.=0)
  • Very cost efficient

Description

DSPA aerosol generators 11-5 and 11-6  can be used as a part of a highly effective fire extinguishing system. A DSPA generator is non-pressurized and is installed inside a room or compartment that requires protection. After activation, an aerosol cloud is generated, which expanse volumetrically, flooding the space and extinguishing the fire. The DSPA generators are mainly designed to use in normally unoccupied and unoccupied areas and are effective on class A, B, C fires.

Application

The DSPA generators 11-5 and 11-6 are recommended for the protection of semi large compartments such as storage rooms, archives, technical rooms and server rooms.



DSPA 11-5, 11-6
1 2 3 5 6 7 9 10
Specifications
Model 11-5 11-6
Dimensions 217 x 99 mm
8,5”x 3,9”
217 x 99 mm
8,5” x 3,9”
Total weight 4 kg
8,8 lbs
4,5 kg
9,9 lbs
Volume coverage 11 - 32 m³
390 – 1130 ft³
19 - 55 m³
670 – 1940 ft³
Discharge time 50 sec 40 sec
Activation, current Screw-in starter, 1.3A
Operation conditions -40°C to 75°C/ -40°F to 167°F
Up to 95% RH at 54°C
Colour Standard RAL 3000, other colours upon request
Download data_Sheet_11-5_11-6_V1.3
